Signature Panels
Advantages of Easy Fence Panels
- Carefully engineered, and constructed to be light weight, yet strong enough to withstand the most severe stretching pressure.
- Designed for permanent fences or temporary installations.
- Installation only takes 10 minutes.
- No welding or drilling required.
Fence Panels
Advantages of Easy Fence Panels and Braces
- Only simple clips are needed.
- Durable, rust-resistant finish. The panels will last for years.
- Will not burn.

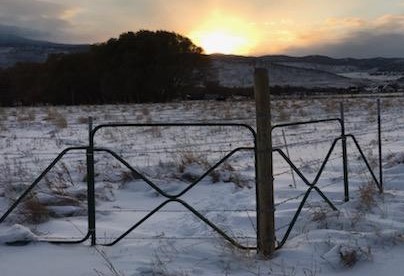

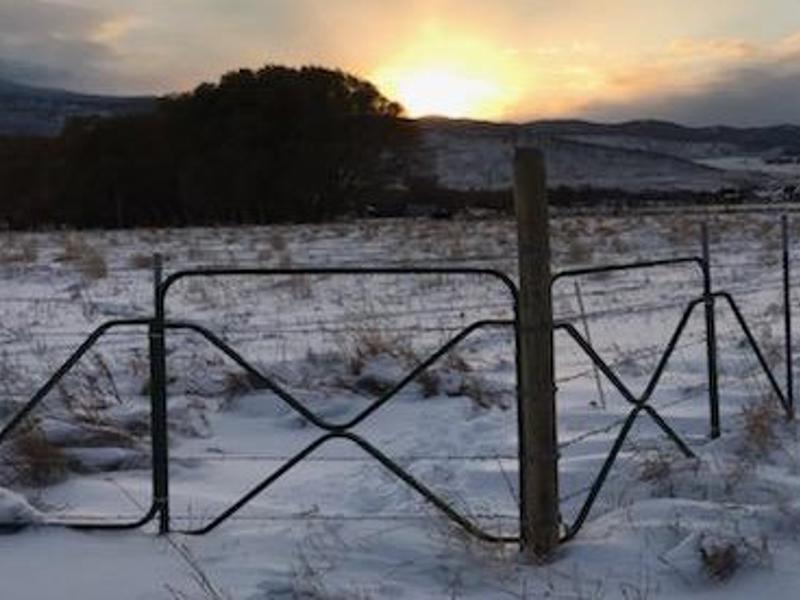

- Can be used in winter when the ground is frozen.
- Reusable and easily transported.
Reliability
Easy Fence Brace Panels have been tested by Powder River Research and Development Engineers with the following results:
"The... numbers (see illustration) indicate pressures at which the brace panels began to crack under severe stress tests. The tests were designed to pull the braces apart at the welds. Pressures pushing toward the center would withstand many more times the pressure shown in these results."
Installation Instructions

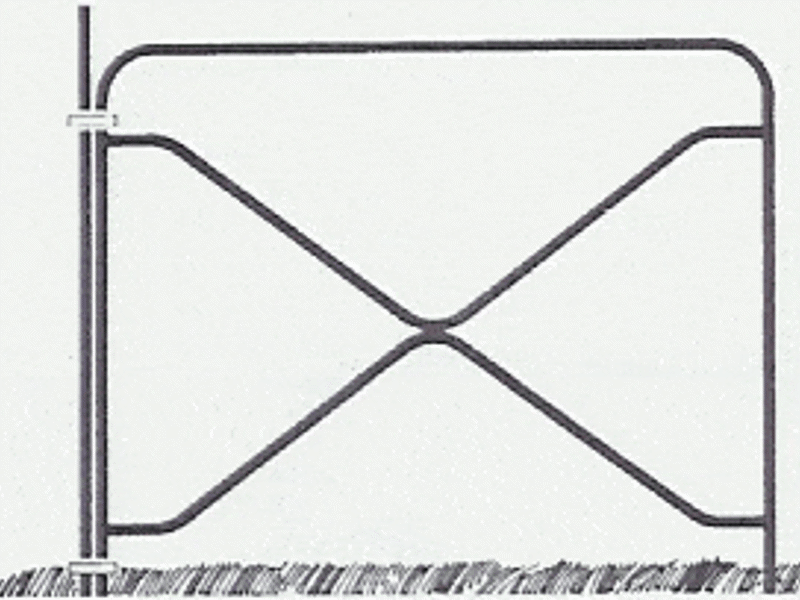

Step 1
Drive Post #1:
-
Post should be 7 feet in length or longer.
-
Clamp Large Panel to the post as shown.
Note: Be sure the post is tight against the brace panel.

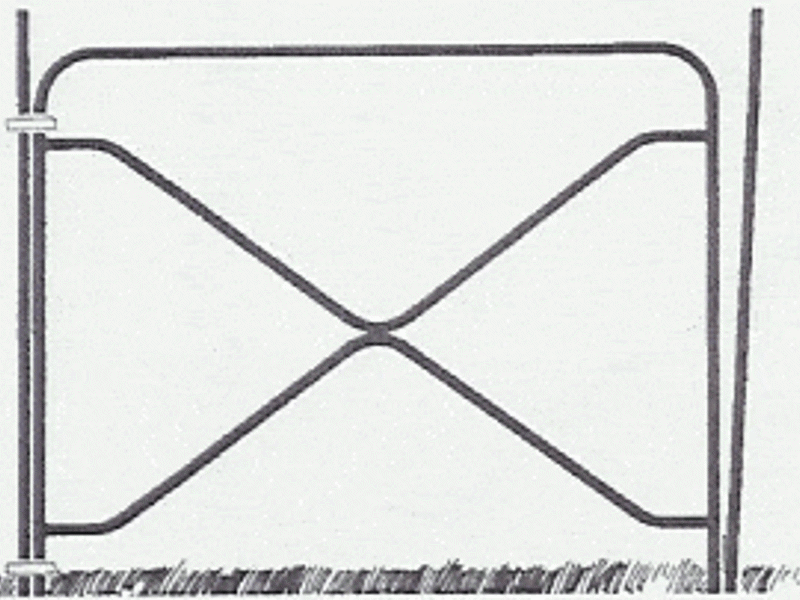

Step 2
Drive Post #2:
-
Move the panel slightly out of line.
-
Drive post #2, as shown, in order for the post hole driver to clear the brace panel.
Note: Be sure the post is tight against the brace panel.
Step 3
Drive Post #3:
-
After driving post #2, hold it tightly against the top of the Large Panel.
-
At the same time, secure both the Large and Small Brace Panels at the top of the post with a clamp.
-
Attach a second clamp at the bottom of the panels and T post.
Note: If rocky soil prevents post from fitting tightly against brace panel, bend the T post to the brace panel to fit tight.
Step 4
Drive Post #4:
-
Drive post #3 and secure Small Brace Panel to it as shown.
Step 5
-
On slopes or grades adjust the brace up or down as needed.
-
For sandy soils or swamps a "dead man" post may be used to provide extra support.
-
A T post is driven into the ground next to the original T post and panel until only the top is above ground.
-
This "dead man" post is then clamped to the original post and panel.

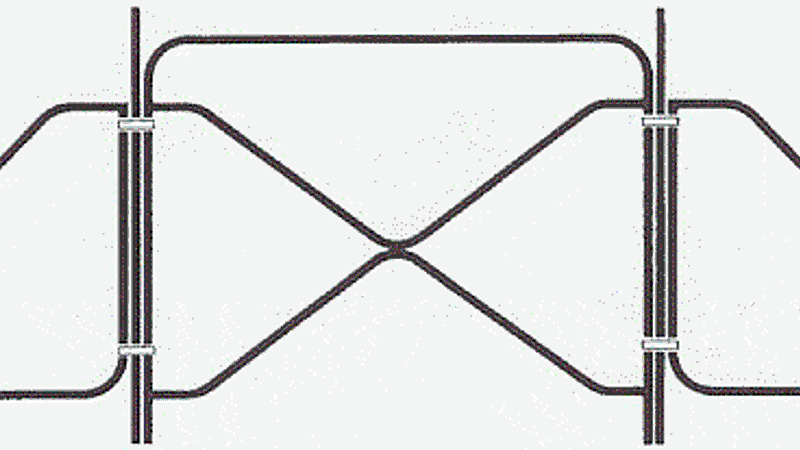

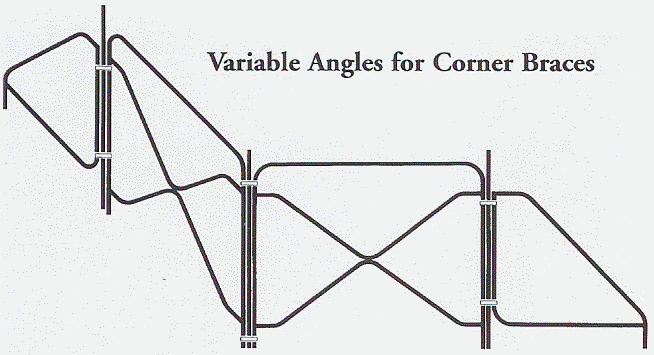

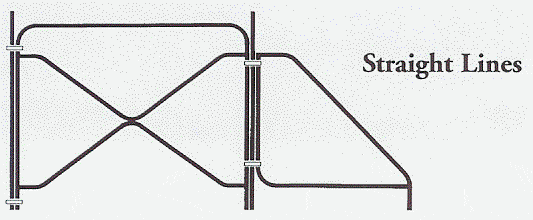

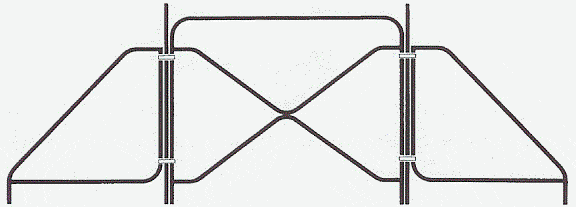

Panel Configurations
Easy Fence Panels and Braces are for use wherever conventional types of braces are required.
Fencing solutions that are faster, easier, and cheaper.
